Where Will Your Data Take You?

Backpack PEMS: Robust Data Solutions for Small ICE Applications


Measures CO, CO₂, NO, HC, PM, and PN for Small ICE Engines

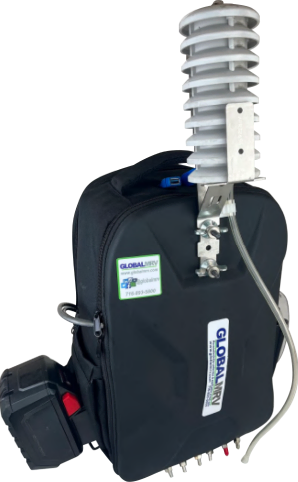

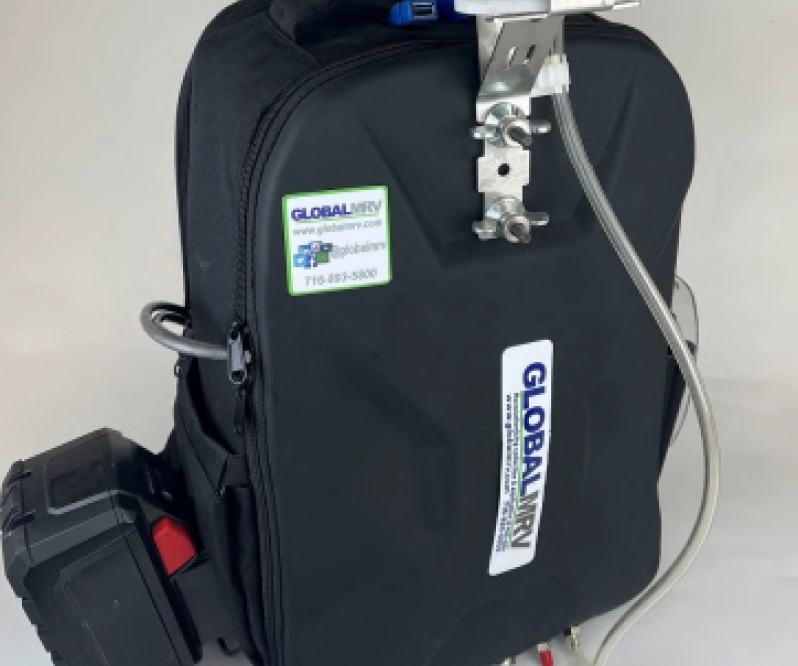

What is GlobalMRV’s Backpack?

One of the most flexible PEMS solutions conceived of in the last decade, Backpack measures mass-flow real-driving emissions in real-time. Using proprietary software and research-backed flow calculation methods, Backpack PEMS delivers large volumes of data in even the harshest and most isolating conditions.

Introducing the most flexible PEMS in decades. The Backpack will go where no other PEMS, iPEMS, or mini-PEMS has been able to go before.

More Flexibility, Less Set-Up, and Faster Results
Introducing GlobalMRV’s Backpack PEMS

How does GlobalMRV’s Backpack work?

Finally, a compact solution that delivers huge results. Whether testing lawnmowers or construction equipment, GlobalMRV’s Backpack is the first technology of its kind to help test small internal combustion engines (ICE) on and off the road.

We test it all: snowblowers, weed whackers, generators, leaf and debris blowers, chainsaws, push and riding lawnmowers, and much more.

Best of all, Backpack PEMS is built with your safety in mind. In case of a difficulty or emergency, a safety breakaway connection easily allows the wearer to separate from the equipment.

Powered by LabVIEW©-based proprietary software and supported by design and operational engineers with over 30 years of experience in the emissions sector, GlobalMRV’s Backpack PEMS delivers accurate and reliable PEMS flow data, all while reducing the need for bulky testing equipment.

Online, phone, and email support are included in the warranty with each Backpack purchase


  • 21.25”Hx 9”D x 17.25”W
  • (539mm x 228mm x 438mm)

Weight, Power, and Flow

  • Weight: 15 lbs. (6.7 kg)
  • Power: 12 to 14 VDC
  • Amperage: 5-8 amperes
  • Sample Flow (Volume): 5 liters per minute (IN)

Modules Available

  • +PM Module: Particulate Matter (PM) and Particle Number (PN) are measured utilizing the process of a laser light scattering technique.
  • A fully integrated PM and PN module can easily fit into the Backpack.

Measured Parameters

  • Time
  • Vehicle speed
  • RPM
  • Intake air temperature
  • Manifold Absolute Pressure and/or Mass Airflow
  • Emissions: HC, CO, NO, CO₂, O₂ and PM
  • Grams of pollutant per second (g/s), Intake airflow, Exhaust air flow, and Fuel consumption

Optimal Instrument Conditions

  • 5°C to 35°C (40°F to 95°F)
  • 0-90% relative humidity (RH), non-condensing



Applicable operational engines include vehicles operating in real-world driving conditions, such as:

  • Lawn equipment
    • Weed whackers
    • Riding and push lawnmowers
    • Hedge trimmers
    • Leaf or debris blowers
    • Chainsaws
    • Snowblowers
    • Generators
  • Motorcycles
  • ATVs

In case of difficulties or emergencies, GlobalMRV’s Backpack PEMS provides a quick breakaway safety strap that will separate the operator from the machinery.


Easy to Deploy

GlobalMRV PEMS, iPEMS, and mini-PEMS units can set up in as little as 15 minutes


Flexible and Affordable

Our Hardware as a Service (Haas) model allows you to rent PEMS, iPEMS, and mini-PEMS for a fraction of the cost


Instant Results

Receive results instantly with our PEMS’ 24/7 monitoring capabilities

Ready to Get Started?

GlobalMRV helps institutions measure, report, and verify emissions for all different testing needs. Contact us today for a risk-free, complimentary consultation.
